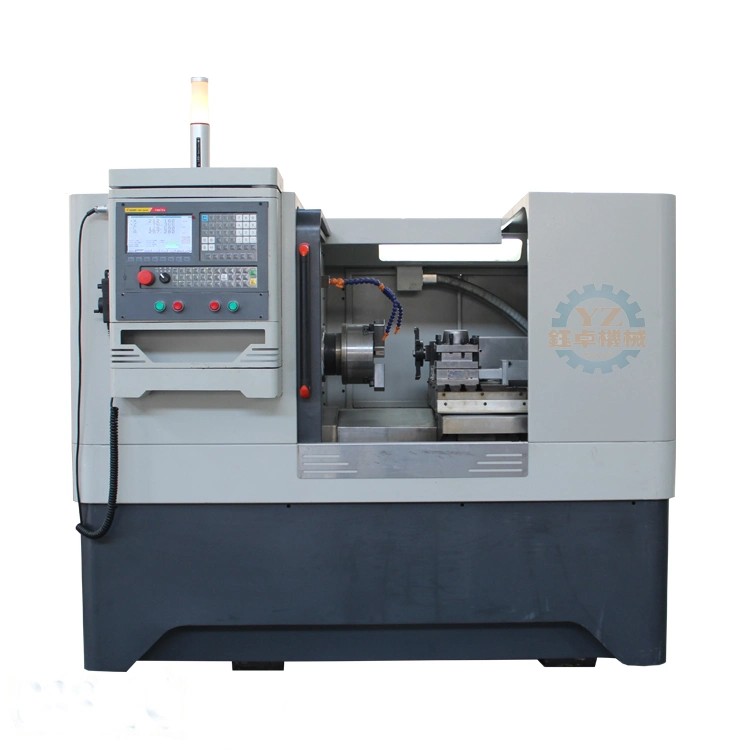

Ck6432 CK0640 CK6140 CK6150 CK46P Horizontal Metal Lathe Machine Tool Mini Lathe CNC Turret Lathe
Specifciation:
Specifciation:
| Item | CK6132 | CK6136 | CK6432 |
| Max. swing dia. over bed | Φ320mm | Φ360mm | Φ360mm |
| Max. swing dia. over cross slide | Φ145mm | Φ200mm | Φ150mm |
| Max. workpiece length | 450mm | 750mm/1000mm | 450mm/700mm |
| Diameter of spindle bore | 52mm | Φ60mm | Φ60mm |
| Spindle taper | A2-4 | MT6 | MT6 |
| Spindle speed | 150~2500rpm | 150-2500rpm | 150-2500rpm |
| Chuck size | 160mm | 200mm | 200mm |
| Tool holder | 4 station | 4 station | 4 station |
| Tool bar section | 20x20mm | 20x20mm | 20x20mm |
| Main motor power | 4kw | 5.5KW | 4kw |
| X/Z axis position accuracy | 0.02/0.025mm | 0.02/0.025mm | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm | 0.01/0.012mm | 0.01/0.012mm |
| X/Z axis torque | 4/4N.m | 4/6N.M | 4/4N.M |
| X/Z axis fast feeding speed | 4/6M/MIN | 6/8 M/MIN | 8/10 M/MIN |
| Tailstock sleeve travel | 75mm | 120mm | 100mm |
| Tailstock taper | MT4 | MT4 | MT4 |
| Dimension | 1730x1000x1570mm | 2370/2620*1400*1700mm | 1660/1940×1400×1700mm |
| Weight | 1200KG | 1750/2000KG | 1250/1450kg |
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.

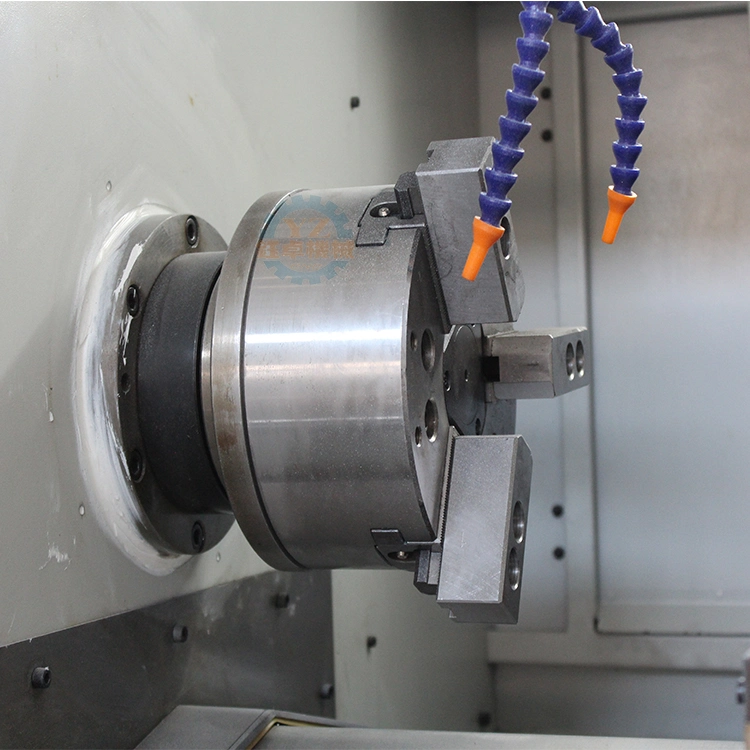

2) 3-jaw chuck.
3) Four station electric tool post or Gang Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
Optional configuration:
2) 3-jaw chuck.
3) Four station electric tool post or Gang Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
Optional configuration:
1) CNC system: GSK, Siemens, Fanuc, KND, etc.
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post, Gang type tool
5)Automatic bar feeder.
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post, Gang type tool
5)Automatic bar feeder.
