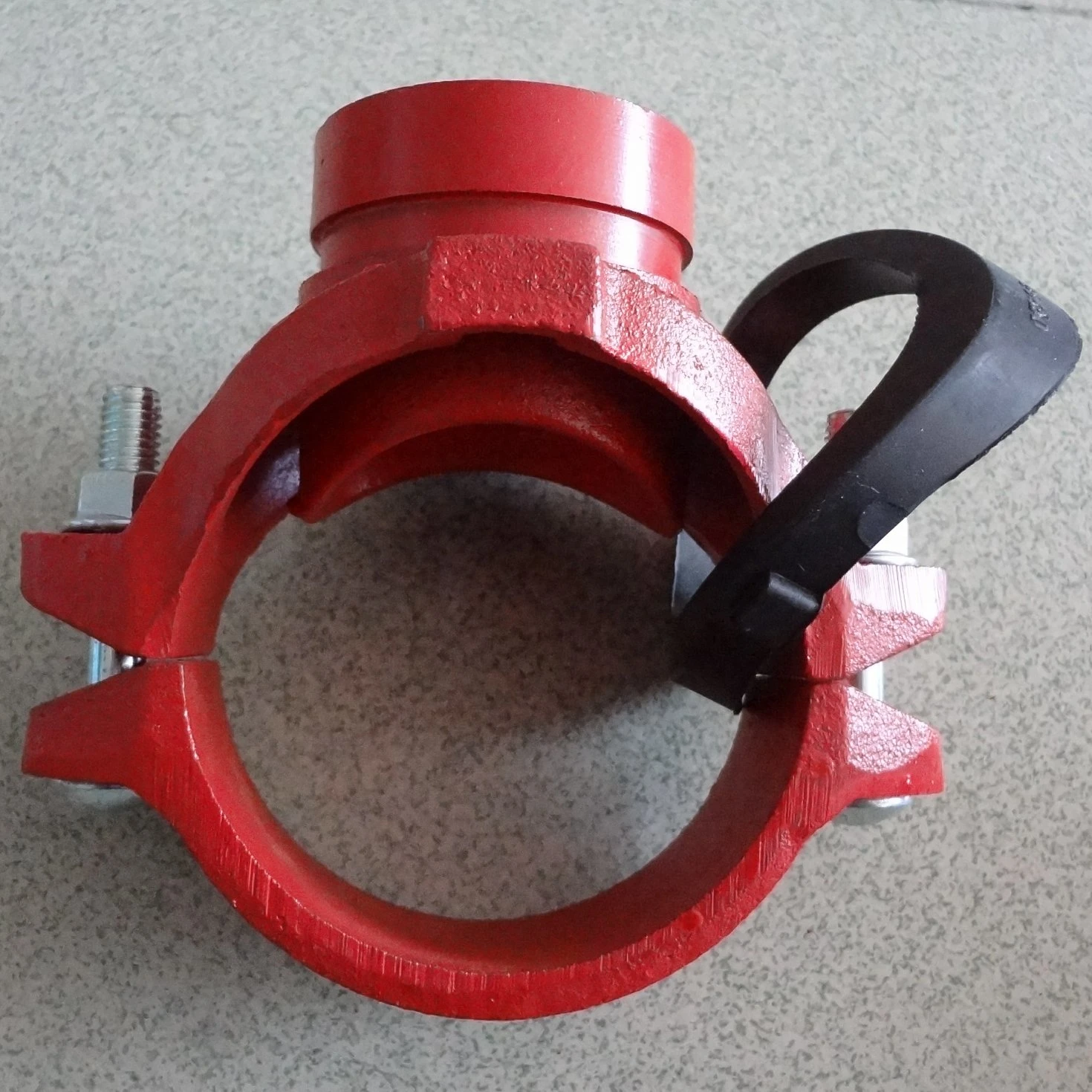

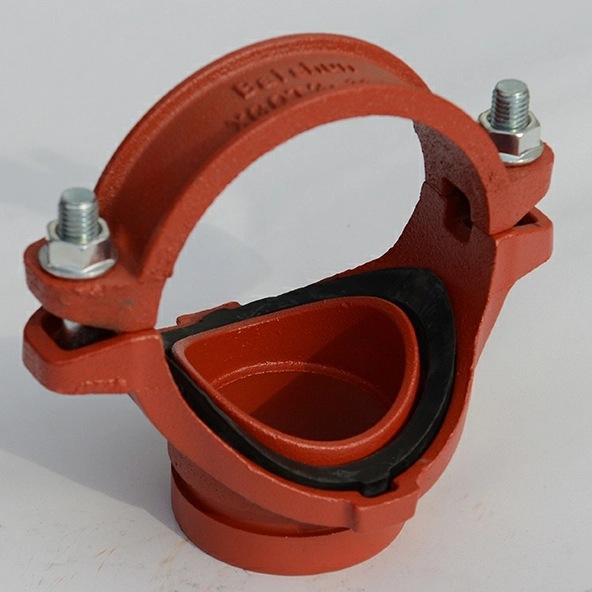

Grooved mechanical tee is mainly used to connect main pipes and branch pipes used in fire protection system, potable water supply system, municipal construction, mine, chemical factory and other occasions when steel pipes used.
With the help of hole cutting machine, it's easy to connect main pipe and branch pipe when needed.
Material of body: ductile cast iron (ASTM A536,Grade: 65-45-12)
Material of gasket: EPDM/NBR
Nominal size: 2" x 1" - 8" x 4"
Working pressure: 2.07MPa / 300PSI
Surface treatment: electrostatic powder coating, RAL3000, blue or as customized.
Bolts and nuts: export grade, stainless steel, grade 8.8
| Nominal size inch / mm | Pipe OD inch / mm | Working Pressure PSI / MPa | Hole dia inch/mm | Product Dimension (inch / mm) | Bolt/Nut | |||
| A | B | C | D | |||||
| 2 x 1 50 x 25 | 2.375 x 1.315 60.3 x 33.7 | 300 2.07 | 1.50 38 | 4.64 118 | 2.80 71 | 2.71 69 | 1.57 40 | 3/8*55 |
| 2 x 1 1/4 50 x 32 | 2.375 x 1.660 60.3 x 42.4 | 300 2.07 | 1.81 46 | 4.64 118 | 2.95 75 | 2.71 69 | 1.57 40 | 3/8*55 |
| 2 x 1 1/2 50 x 40 | 2.375 x 1.900 60.3 x 48.3 | 300 2.07 | 1.81 46 | 4.64 118 | 2.95 75 | 4.488 114 | 1.57 40 | 3/8*55 |
| 2 1/2 x 1 65 x 25 | 2.875 x 1.315 73 x 33.7 | 300 2.07 | 1.5 38 | 5.23 133 | 2.83 72 | 3.03 77 | 1.85 47 | 3/8*55 |
| 2 1/2 x 1 1/4 65 x 32 | 2.875 x 1.660 73 x 42.4 | 300 2.07 | 1.81 46 | 5.23 133 | 3.18 81 | 3.03 77 | 1.85 47 | 3/8*55 |
| 2 1/2 x 1 1/2 65 x 40 | 2.875 x 1.900 73 x 48.3 | 300 2.07 | 2.08 53 | 5.23 133 | 3.38 86 | 3.03 77 | 1.85 47 | 3/8*55 |
| 3 x 1 80 x 25 | 3.5 x 1.315 88.9 x 33.7 | 300 2.07 | 1.5 38 | 5.90 150 | 2.87 73 | 3.33 85 | 2.20 56 | 3/8*55 |
| 3 x 1 1/4 80 x 32 | 3.5 x 1.660 88.9 x 42.4 | 300 2.07 | 1.81 46 | 5.90 150 | 3.22 82 | 3.33 85 | 2.2 56 | 3/8*55 |
| 3 x 1 1/2 80 x 40 | 3.5 x 1.9 88.9 x 48.3 | 300 2.07 | 2.08 53 | 5.90 150 | 3.42 87 | 3.33 85 | 2.2 56 | 3/8*55 |
| 3 x 2 80 x 50 | 3.5 x 2.375 88.9 x 60.3 | 300 2.07 | 2.4 61 | 5.90 150 | 3.93 100 | 3.33 85 | 2.2 56 | 3/8*55 |
| 3 x 2 1/2 80 x 65 | 3.5 x 2.875 88.9 x 73 | 300 2.07 | 2.4 61 | 5.90 150 | 3.93 100 | 3.33 85 | 2.2 56 | 3/8*55 |
| 4 x 1 100 x 25 | 4.5 x 1..315 114.3 x 33.7 | 300 2.07 | 1.5 38 | 7.16 182 | 2.87 73 | 3.90 99 | 2.76 70 | 1/2*65 |
| 4 x 1 1/4 100 x 32 | 4.5 x 1.66 114.3 x 42.4 | 300 2.07 | 1.81 46 | 7.16 182 | 3.22 82 | 3.90 99 | 2.76 70 | 1/2*65 |
| 4 x 1 1/2 100 x 40 | 4.5 x 1.9 114.3 x 48.3 | 300 2.07 | 2.08 53 | 7.16 182 | 3.42 87 | 3.90 99 | 2.76 70 | 1/2*65 |
| 4 x 2 100 x 50 | 4.5 x 2.375 114.3 x 60.3 | 300 2.07 | 2.40 61 | 7.16 182 | 3.93 100 | 3.90 99 | 2.76 70 | 1/2*65 |
| 4 x 2 1/2 100 x 65 | 4.5 x 2.875 114.3 x 73 | 300 2.07 | 3.18 81 | 7.16 182 | 4.64 118 | 3.90 99 | 2.76 70 | 1/2*65 |
| 4 x 3 100 x 80 | 4.5 x 3.5 114.3 x 88.9 | 300 2.07 | 3.38 86 | 7.16 182 | 4.88 124 | 3.90 99 | 2.76 70 | 1/2*65 |
| 5 x 2 125 x 50 | 5.563 x 2.375 141.3 x 60.3 | 300 2.07 | 2.4 61 | 8.46 215 | 4.01 102 | 4.48 114 | 3.26 83 | 1/2*75 |
| 5 x 3 125 x 80 | 5.563 x 3.5 141.3 x 88.9 | 300 2.07 | 3.38 86 | 8.46 215 | 5.27 134 | 4.48 114 | 3.26 83 | 1/2*75 |
| 5 x 4 125 x 100 | 5.563 x 4.5 141.3 x 114.3 | 300 2.07 | 4.48 114 | 8.46 215 | 6.22 158 | 4.52 115 | 3.26 83 | 1/2*75 |
| 6 x 2 150 x 50 | 6.625 x 2.375 168.3 x 60.3 | 300 2.07 | 2.40 61 | 9.60 244 | 4.01 102 | 5.04 128 | 3.81 97 | 9/16*75 |
| 6 x 2 1/2 150 x 65 | 6.625 x 2.875 168.3 x 73 | 300 2.07 | 3.18 81 | 9.60 244 | 4.68 119 | 5.04 128 | 3.81 97 | 9/16*75 |
| 6 x 3 150 x 80 | 6.625 x 3.50 168.3 x 88.9 | 300 2.07 | 3.38 86 | 9.60 244 | 5.27 134 | 5.04 128 | 3.81 97 | 9/16*75 |
| 6 x 4 150 x 100 | 6.625 x 4.5 168.3 x 114.3 | 300 2.07 | 4.48 114 | 9.60 244 | 6.22 158 | 5.11 130 | 3.81 97 | 9/16*75 |
| 8 x 2 200 x 50 | 8.625 x 2.375 219.1 x 60.3 | 300 2.07 | 2.40 61 | 12.12 308 | 4.01 102 | 6.02 153 | 4.88 124 | 5/8*95 |
| 8 x 3 200 x 80 | 8.625 x 3.5 219.1 x 88.9 | 300 2.07 | 3.38 86 | 12.12 308 | 5.27 134 | 6.02 153 | 4.88 124 | 5/8*95 |
| 8 x 4 200 x 100 | 8.625 x 4.5 219.1 x 114.3 | 300 2.07 | 4.48 114 | 12.12 308 | 6.22 158 | 6.10 155 | 4.88 124 | 5/8*95 |
UL listed and FM approved
in cartons and then on pallets
pipe cutting machine, hole cutting machine, roll groove machine etc.
