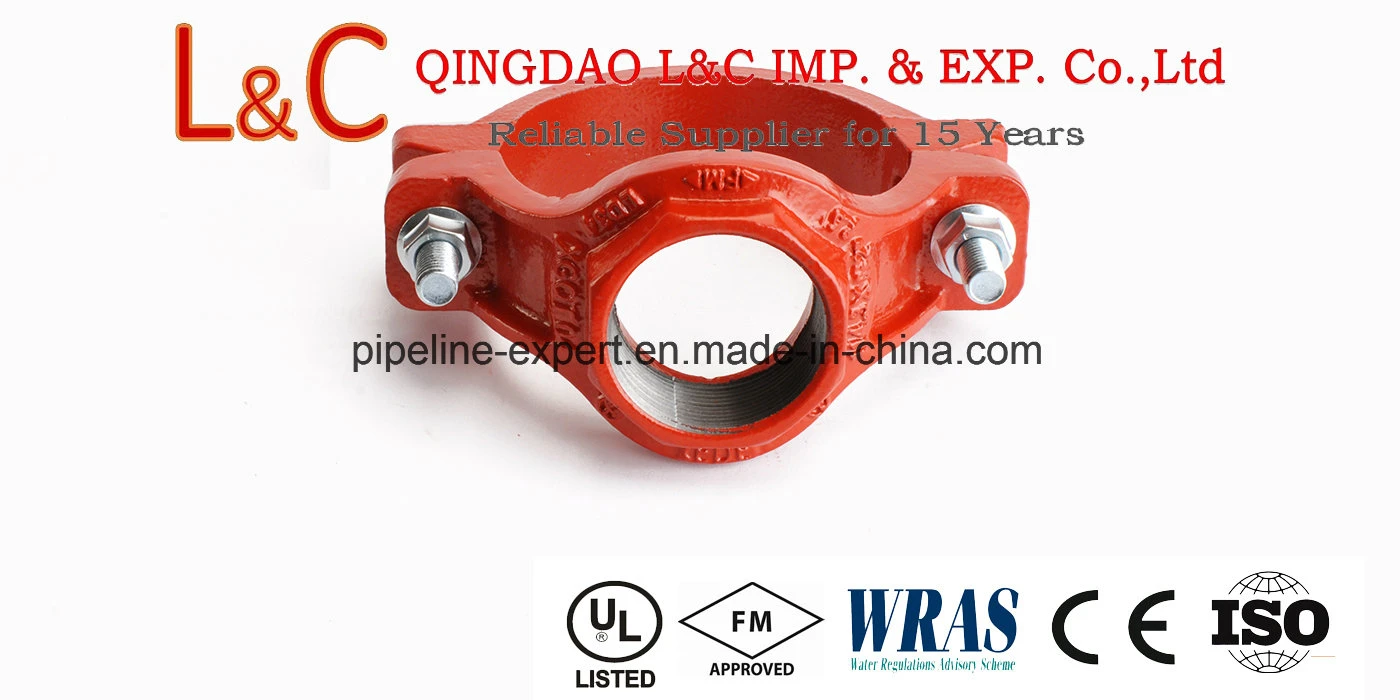

| Quick Details | |
| Material: | Iron, Ductile Iron |
| Technics: | Casting |
| Type: | Tee |
| Place of Origin: | Shandong, China (Mainland) |
| Model Number: | XGQT1 |
| Brand Name: | LEDE |
| Connection: | thread mechanical |
| Shape: | Equal |
| Head Code: | Square |
| Pressure: | 300PSI |
| Color: | RAL3000 |
| Package: | Non-Fumigation Pallet |
| Usage: | Connection of Pipe |
Features:
1)ductile iron ductile iron pipe fittings
2)Finish:Paint ,Epoxy Powder or Darcromet
3)Color:Red RAL3000,
4)300PSI
Product introduction:
Rigid couplings for grooved piping systems are manufactured to provide rigidity at the assembled joint, similar to it being welded or flanged. ANSI B31.1 Power Piping Code instructs minimum hanger spacing for piping with rigid connections, as does ANSI B31.9 Building Service Code and NFPA 13 Fire Protection Systems. Underwriters Laboratory defines a rigid pipe connection as one that does not deflect from center-line by more than one (1) degree. After the pipe ends are grooved a rubber gasket that is suitable for the system is stretched over the pipe ends. The coupling segments are then placed over the gasket and the bolts and nuts are fastened resulting in a secure and leak free joint. Rigid couplings are used largely to assemble horizontal piping which holds the weight and provides a platform with is plumb and accommodates the weight of the fluid, fittings, valves and devices
Suitable for fire protection services, water supply systems and other process systems of higher work pressure.
Ductile Iron construction.
Non-lead orange paint
Conforms to ASTM A536
